Air Header - Create Multiple Connections
Air Header
Empex Stainless Air Manifolds provide multiple connection options for effective isolation and distribution. From a single inlet, you can create up to 24 outlets, making them ideal for centralized air or gas distribution systems.
Instrumentation Fittings Air Headers are available in a wide range of configurations to meet specific end-user requirements, including NPT, BSP, Butt Weld, Flanged, Socket Weld, and Compression outlets. Designed as a practical substitute for multiple individual valve assemblies, air headers operate from one common originating point, simplifying installation and reducing system complexity.
Our Air Manifolds are engineered to accommodate various outlet valves, and the inlet connection can be supplied with different end connection options to match your piping system requirements, ensuring flexibility, durability, and reliable performance.
Standard Air Header Format
Number of Ports/Outlets :4 Way to 24 Way
Pipe Size : 1″ to 4″
Pipe Schedule : Sch 10,Sch 40,Sch 80.Sch 160
Inlet : Flanged ,Ball Valve, Needle Valve, NPT Female or Male
Outlets: Ball Valve, Needle Valve, NPT Female or Male,Socket Weld ,Butt Weld
Drain :Flanged ,Ball Valve, Needle Valve, NPT Female or Male,Plugs

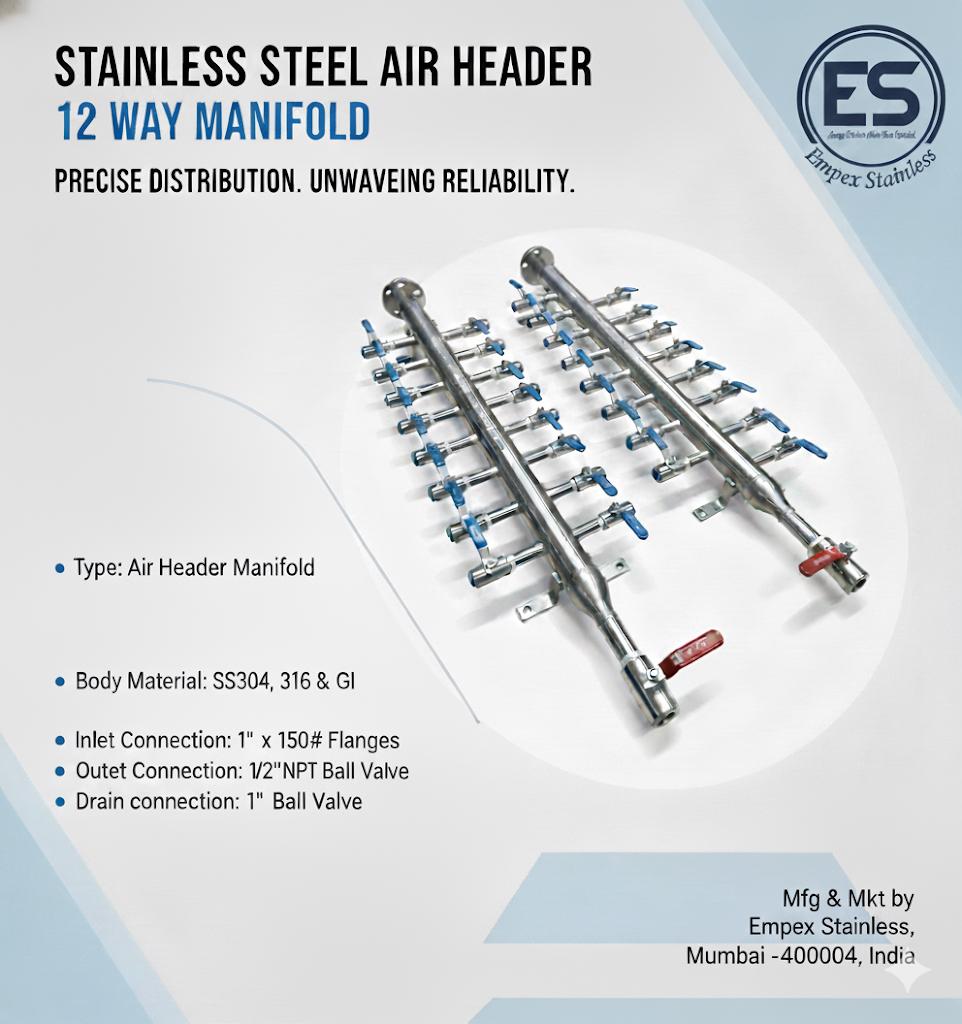

Air Header with Ball Valve
Air Header with Ball Valve

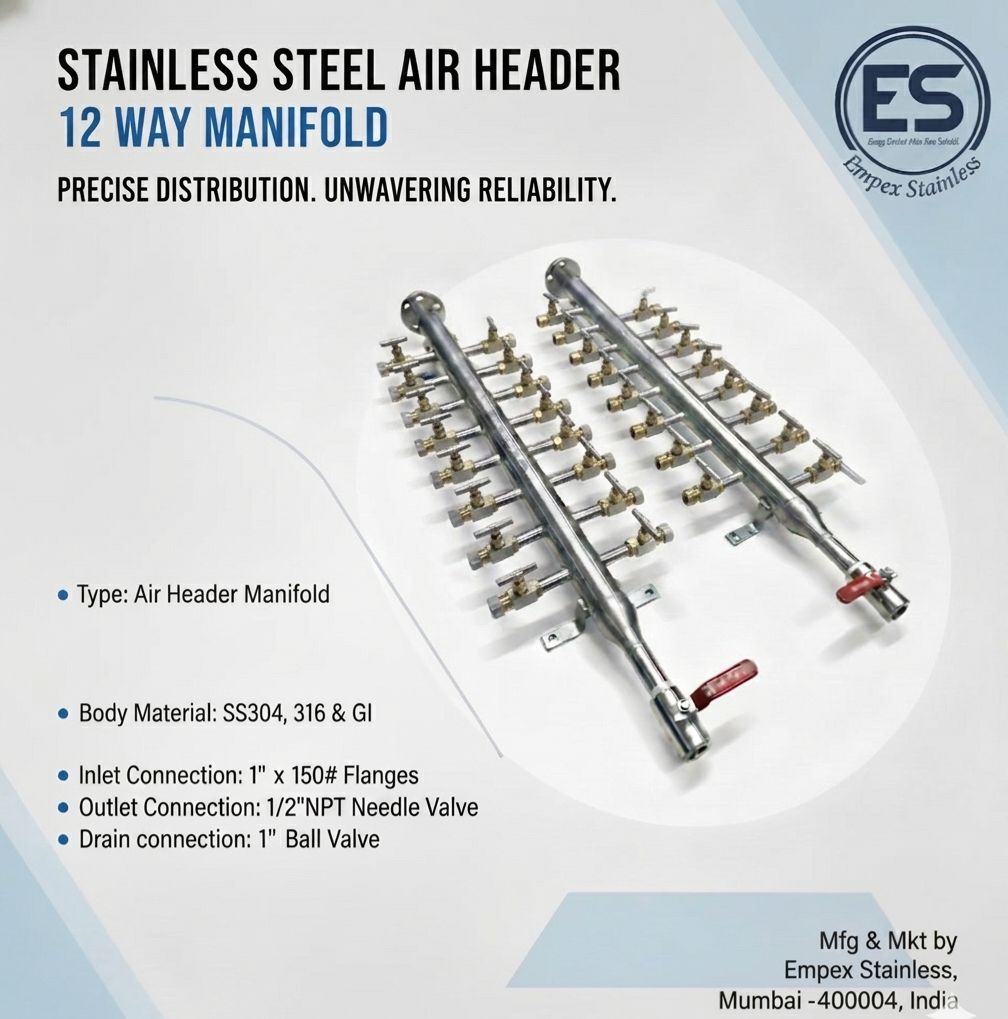

Air Header with Needle Valve
Air Header with Needle Valve
Some common sizes of Air Headers, Air Distribution Manifolds are
SS 316
Air Header 10 way (5×5)
Inlet 2″ NPTF Ball Valve
Outlet 1/2″ NPTF Ball Valve with 1/2″ NPTM Plug
Drain 1/2″ NPTF Ball Valve with 1/2″ NPTM Plug
SS 304 Air header, 12 Way
Pipe Size 1″
Inlet 1/2″ NPT Female
Outlet 12 off SS 304 Ball Valve 1/4″ NPT F
Drain SS 304 Needle Valve 1/2″ NPT F
SS 304 Air header, 16 Way
Pipe Size 1″
Inlet 1/2″ NPT Female
Outlet 16 off SS 304 Ball Valve 1/4″ NPT F
Drain SS 304 Needle Valve 1/2″ NPT F
